Sydney Sewing Cabinet

Sydney Sewing Cabinet

Sydney Sewing Cabinet

Kangaroo Sewing Furniture

(No reviews yet) Write a Review
$2,499.00 - $2,999.00
$2,499.00 - $2,999.00
Adding to cart… The item has been added

Select an icon to view image gallery.

Assembly Manuals

Sydney Assembly Manual

View Pdf

Hydraulic Lift Instruction Manual

View Pdf

Electric Lift Installation Guide

View Pdf
  • Color: Choose between ash white, gray, or teak
  • Finish:  Woodgrain Melamine Laminate
  • Cabinet Dimensions (With Leaves Open): 75 ⅜” W × 56½” D × 30” H
  • Scroll Down for more detailed measurements and to see what machines are compatible.

Looking for adaptability, innovative storage solutions, and miles of worksurface? Say G’day! to the Sydney Sewing Cabinet, the premier quilting and embroidery cabinet.

The Sydney Sewing Cabinet was designed with the largest premium machines in mind – the extra-large lift opening (available with hydraulic or electric lift hardware) accommodates the biggest premium machines on the market.

You can be sure that whatever project you’re working on, the Sydney Sewing Cabinet can handle it!

Please Note: The Sydney XL Sewing Cabinet with Electric Lift will arrive to you fully assembled and ready to sew.

Sydney XL Cabinet Dimensions

Sydney XL Sewing Cabinet Dimensions (open w/o Caddy): 75 ⅜” W × 62” D × 30” H
Sydney XL Sewing Cabinet Dimensions (closed): 61 ⅛” W × 27 ½” D × 30” H
Quilt Leaf Dimensions: 60 ½” W × 15 ¾” D × ⅝″ H
Right Side Leaf Dimensions: 14 ⅞” W × 26 ¾” D × ⅝″ H
Top Drawer Dimensions: 12 ⅝” W × 14 ⅞” D × 3 ⅛″ H
Top Drawer Cover Dimensions: 20 11⁄16” W × 13 ¾” D × ⅝″ H
Middle Double Drawer Dimensions: 12 ⅝” W × 20 ⅞” D × 4 ¼″ H
Bottom Drawer Dimensions: 12 ⅝” W × 20 ⅞” D × 8 ⅛″ H
Ironing Pad Dimensions: 20 ⅝” W × 16 ¾” D
Sewing Machine Drop in Opening: 30 ½” W × 14 ½” D × 15 ½″ H

Sydney Lite Cabinet Dimensions

Sydney Lite Sewing Cabinet Dimensions (open w/o Caddy): 75 ⅜” W × 56 ½” D × 30” H
Sydney Lite Sewing Cabinet Dimensions (closed): 61 ⅛” W × 27 ½” D × 30” H
Quilt Leaf Dimensions: 60 ½” W × 15 ¾” D × ⅝″ H
Right Side Leaf Dimensions: 14 ⅞” W × 26 ¾” D × ⅝″ H
Top Drawer Dimensions: 12 ⅝” W × 14 ⅞” D × 3 ⅛″ H
Top Drawer Cover Dimensions: 20 11⁄16” W × 13 ¾” D × ⅝″ H
Middle Double Drawer Dimensions: 12 ⅝” W × 20 ⅞” D × 4 ¼″ H
Bottom Drawer Dimensions: 12 ⅝” W × 20 ⅞” D × 8 ⅛″ H
Sewing Machine Drop in Opening: 30 ½” W × 14 ½” D × 15 ½″ H

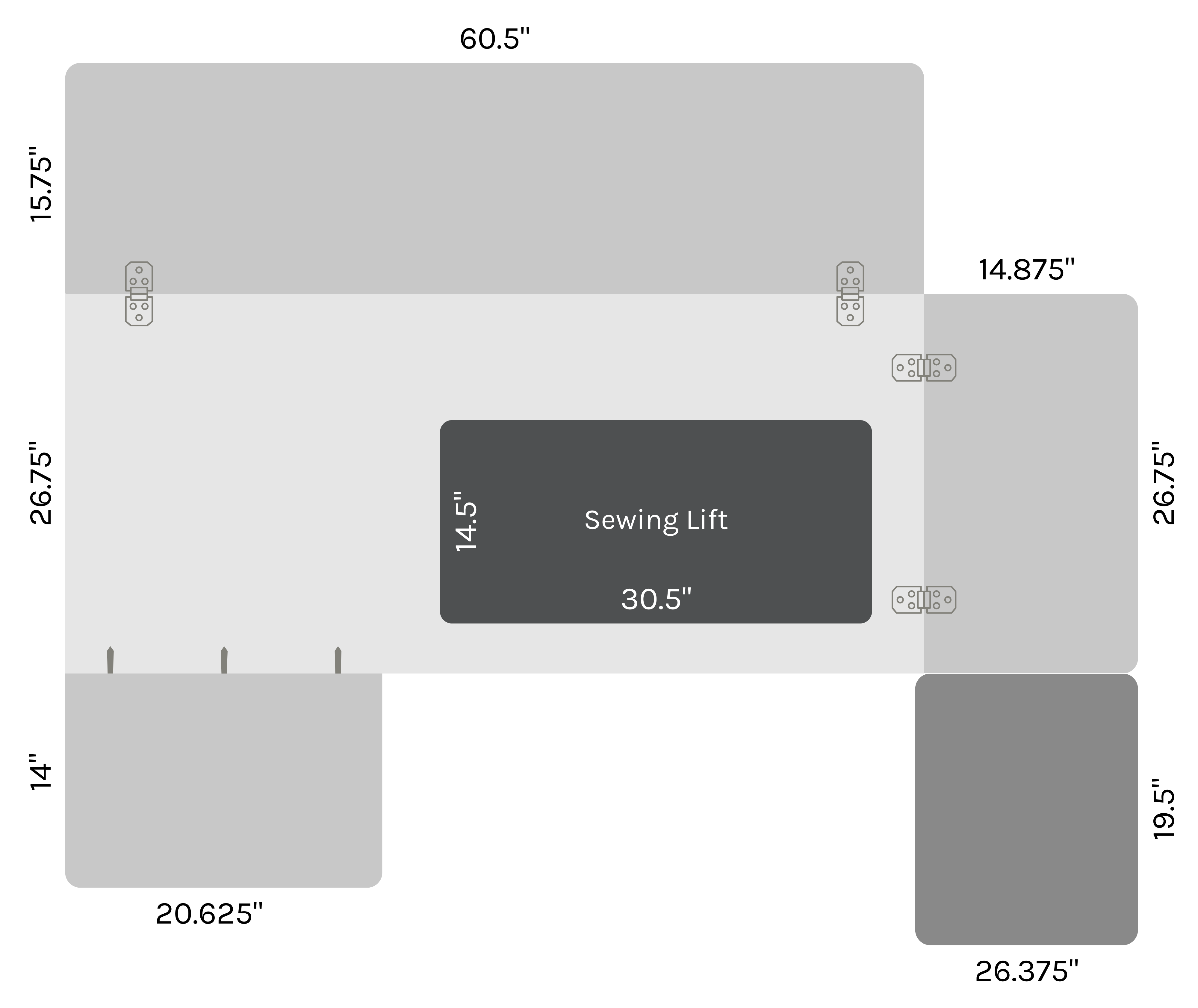

Sydney XL Sewing Cabinet Layout:

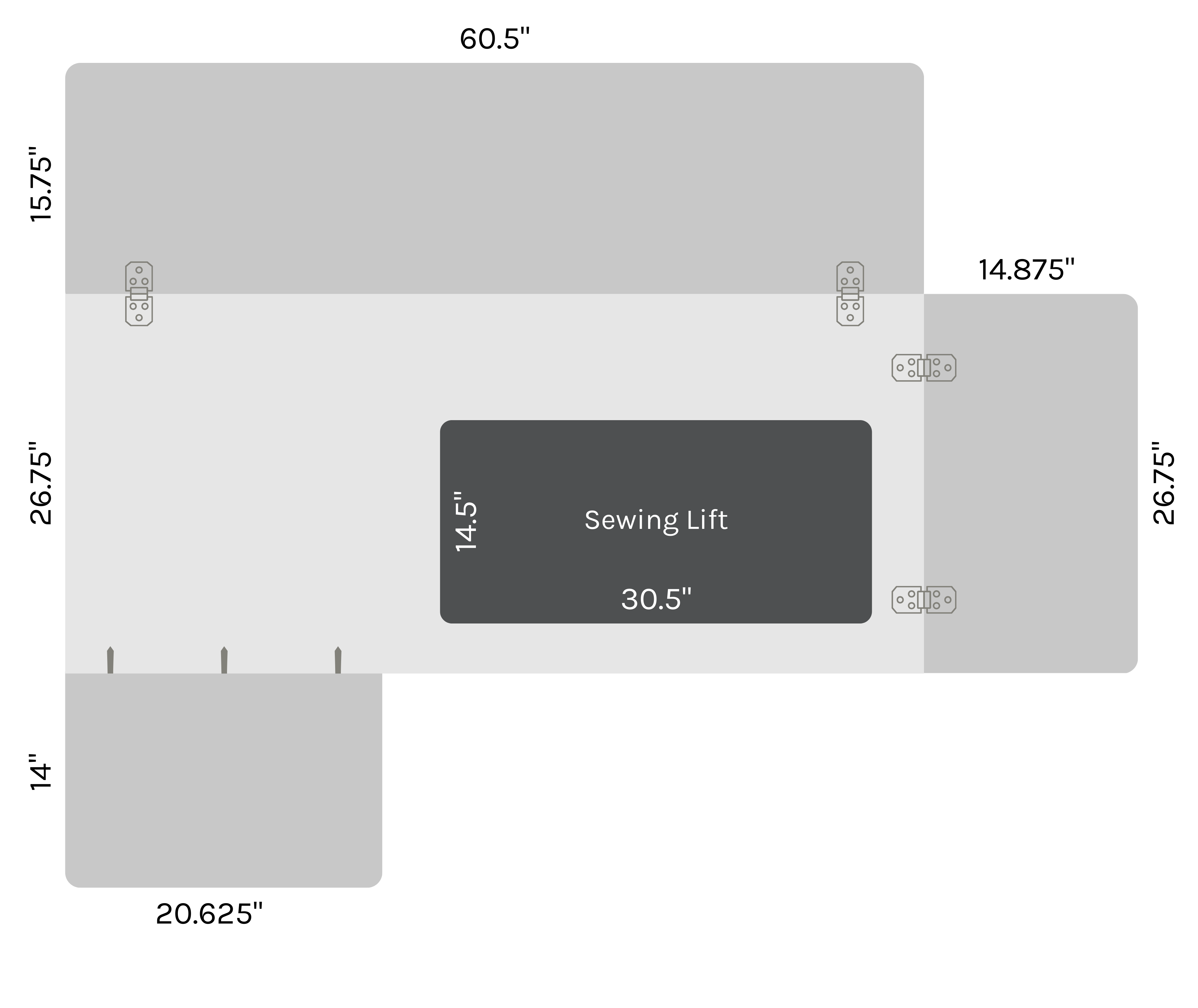

Sydney Lite Sewing Cabinet Layout:



Sydney XL Sewing Cabinet Details:

  • Compatible with custom acrylic sewing inserts to create a totally flush sewing surface.
  • Extra-large lift opening accommodates largest sewing machines on the market, up to 65 lbs.
  • Rear quilt leaf expands worksurface to keep large projects from pulling or laying on floor.
  • Innovative right quilt leaf, right extension, and left drawer extension for additional workspace.
  • 2 support arms under rear quilt leaf create space for a 2nd sewing machine.
  • Storage cubby features 3 adjustable shelving areas, and can be used to store embroidery arm (features padded liner for extra protection).
  • Includes ironing board, and 3 full-view drawers complete with removable thread storage rack, accessories tray, and soft-close technology.
  • Locking doors and drawers for safety and security.
  • Sturdy design with locking heavy-duty casters for stability and easy mobility.
  • Sydney Sewing Cabinet with Electric Lift arrives fully assembled.



Sydney Lite Sewing Cabinet Details:

  • Compatible with custom acrylic sewing inserts to create a totally flush sewing surface.
  • Extra-large lift opening accommodates largest sewing machines on the market, up to 65 lbs.
  • Rear quilt leaf expands worksurface to keep large projects from pulling or laying on floor.
  • Innovative right quilt leaf, right extension, and left drawer extension for additional workspace.
  • 2 support arms under rear quilt leaf create space for a 2nd sewing machine.
  • Storage cubby features 3 adjustable shelving areas, and can be used to store embroidery arm (features padded liner for extra protection).
  • 3 full-view drawers come complete with removable thread storage rack, accessories tray, and soft-close technology.
  • Locking doors and drawers for safety and security.
  • Sturdy design with locking heavy-duty casters for stability and easy mobility.



Sewing Machine Insert Details:

Your sewing machine must be at least 1" smaller on all sides than the machine opening for the custom insert to fit properly. If your machine is equal to or larger than the opening dimensions, it will not fit.

If you're ordering a custom acrylic sewing insert, this 1" clearance is also required to ensure a proper fit. The insert will ship separately.

All Juki TL machines, and all the computerized machines will fit inside of the drop down but will not give you enough room for an insert to make your work area flush. If you unsure about your Juki Machine fitting, please feel free to contact us via phone: 813-661-9000 or email: customerservice@jukijunkies.com to confirm before purchasing.

Shipping Information:

  • Arrow Sewing determines shipping carrier (FedEx or UPS) - this is a drop shipped item.
  • Sewing furniture cannot be shipped to a PO Box.
  • Sydney Sewing Cabinet will arrive in 5 boxes.
  • Sydney Sewing Cabinet with Electric Lift will arrive fully assembled.
  • If ordered, custom acrylic sewing inserts will be shipped separately and delivered later than sewing furniture.
  • Shipping is free for the cabinet unassembled.
  • White glove service ships fully assembled, please contact us to see if your address qualifies.
