Juki Jin NA-11UT: The Strength to Create More

The JUKI JIN NA-11 is a direct-drive, 1-needle, top and bottom-feed lockstitch machine designed to handle heavy-weight materials with ease. Equipped with a high-torque motor, it delivers consistent stitching even through multi-layered fabrics like denim canvas, and upholstery. The machine features a horizontal-axis full-rotary double-capacity bobbin, reducing bobbin changes and enhancing efficiency. Its extended arm provides ample workspace, making it ideal for large items such as bags, and home decor. Additional features include a needle thread clamping device to prevent thread pull-out at the start of sewing, an integrated LED light for improved visibility, and a presser foot lift of up to 16mm to accommodate bulky materials. For those seeking enhanced productivity, the NA-11UT variant offers an automatic thread trimmer, ensuring clean cuts across various thread thicknesses.

Standard Features:

• Increased productivity by improved operability: The machine is designed with a longer throat space of 261mm (10.28"), which increases the space between the arm and the needle. This extra room makes it much easier to handle and maneuver large items while sewing.
• Led Light The LED light is located on the underside of the arm jaw. It reduces eye fatigue and improves work efficiency.
• The Direct Drive System and The Operation Panel: The sewing machine has been integrated with the control box and the operation panel for ease of use. The direct-drive motor system has been adopted by all of the sewing machine. This sewing machine is provided with a high-torque direct-drive motor that supports heavy-weight materials. Thanks to this motor, the sewing machine achieves excellent responsiveness and maintains strong material-penetrating power even when sewing multi-layered parts of material.
• Needle Bar Stroke: 37mm
• Needle Thread Clamp: The needle thread clamp holds the thread and pulls it under the material at the start of sewing, helping reduce thread tangling on the backside of the fabric. This creates a cleaner area around the needle entry and allows for the use of different gauge components.
• Feed Mechanism:The machine’s powerful top & bottom feed demonstrates its performance when sewing leather and heavy fabric. The lift of the presser foot is as high as 16 mm, which responds to the sewing of bulky materials.
• Large Capacity Bobbin: The adoption of the horizontal-axis double-capacity hook helps reduce the frequency of bobbin thread replacement, thereby promising sewing work with efficiency. This hook is also helpful not only when sewing with thick thread but also when sewing a long seam length.
• Improved Production Time with Thread Cutter: The automatic thread trimmer achieves consistent thread trimming regardless of thickness of the thread, i.e., from thin to thick thread. The machine has adopted the rotary thread trimming mechanism which matches, in particular, design stitch with thick thread for furniture and bags. The automatic thread trimmer improves workability and increases productivity. When compared with the sewing machine without a thread trimmer, the NA-11UT substantially decreases the consumption of thread. The knife pressure can be adjusted with the adjusting screw.

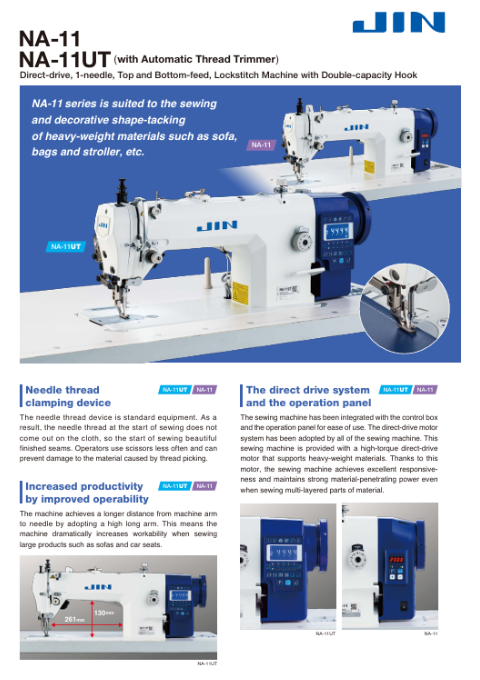

• Feel free to keep scrolling and reading, but be sure to check out our Juki brochure below as well.

Return Policy Disclaimer for Industrial Machines

Please note that due to the specialized nature of industrial machinery, all sales are final and these products are non-returnable once shipped. As these machines are tailored to specific needs, we are unable to accept returns after shipping has occurred.

We encourage you to carefully review product details, specifications, and compatibility before completing your purchase. Our team is happy to assist with any questions or concerns prior to ordering, ensuring the machine meets your needs.

By purchasing an industrial machine from our site, you acknowledge and agree to these terms.

What to Expect: Delivery, Setup, and Product Details

This product is sold as a complete unit. Upon delivery, it will arrive on a palette with the table fully assembled and the machine securely packaged in a box. For your convenience, we provide video installation help below to guide you through the process.

• Variations: Due to the nature of industrial sewing machines, table colors may vary and minor scratches on the table may occur during shipping. This is normal and to be expected with industrial machinery deliveries.
• Needle Positioner Orders: If you’ve chosen to add a needle positioner to your machine, please note that the box will be opened by our technicians to install the needle positioner before shipping. This ensures proper installation and quality control, but rest assured, all components will be carefully re-packed for safe delivery.

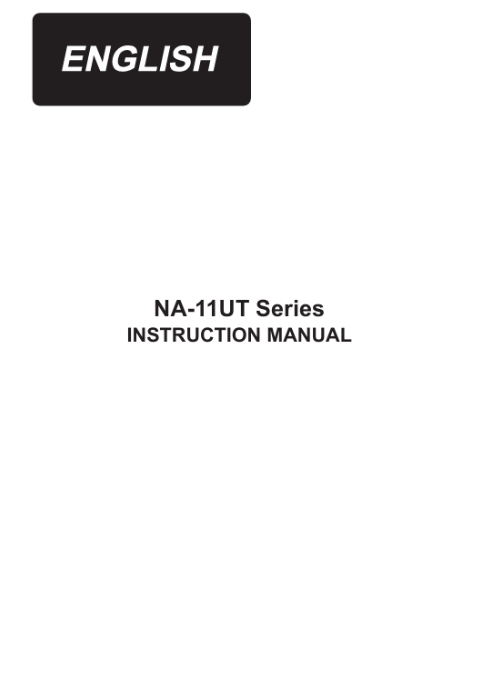

• Manual: The machine does not come with a manual. Please scroll down to view or print manual.
• Open the Drawer: Open the drawer in the table to find accessories.

Made in Japan

2000 Stitches per Min.

Sewing Speed Max

8mm

Max. Stitch Length

16mm

Lift of Presser Foot by Knee

8mm

Lift of Presser Foot by Hand

DBx17

Needle System

37mm

Needle Bar Stroke

Size 18-24

Needle Range

Bonded Nylon

Thread Type

30-8

Thread Range

10.28 inches

Throat Space

Feed Mechanism

Vertical and Horizontal Driven

TBA

Table Dimensions

Machine Oil No. 18

Lubrication Oil

89 lbs.

Weight of Machine
