Standard Features:

• Vertically- and Horizontally-Driven Digital Feed Mechanism: The Juki DDL-9000C-FSH features a cutting-edge vertically- and horizontally-driven digital feed mechanism that ensures smooth fabric feeding. This advanced system provides exceptional control over both thick and thin materials, delivering precise stitch consistency. The mechanism improves fabric handling and prevents slipping, even when working with challenging fabrics, ensuring perfect seam quality every time. Additionally, sewists can easily select the desired feed mechanism directly from the touch panel, choosing between four options: Standard, Front Up, Rear Up, and Box Feed. This allows the sewist to pick the perfect setting tailored to the material they’re working with, ensuring optimal performance for every project.
• Knee Lift Mechanism: The Juki DDL-9000C series offers a presser foot lift range of 5.5 mm by hand, up to 15 mm by knee lever, and from 0.1 mm to 13.5 mm through its adjustable automatic lift (0.1–8.5 mm for the first stage, 8.5–13.5 mm for the second stage.
• Adoption of the needle-thread active tension: Needle tension is digitally controlled! Needle thread tension can be easily set on the operation panel and saved in memory, reducing setup time when switching between projects. While adjusting needle thread tension requires experience, this machine allows you to recall stored tension settings, making it simple to replicate the ideal setup. For example, during topstitching or sewing difficult materials like welting shoulders, the machine adjusts the tension automatically, ensuring consistent, uniform stitches even if the fabrics differ in texture.
• Active presser foot pressure mechanism: The Juki DDL-9000C-FSH features digitally controlled presser foot pressure. In automatic mode, the multi-layered section detection function adjusts the presser foot pressure based on changes in material thickness. In manual mode, the hand switch allows for direct control of the pressure. This active presser foot pressure mechanism helps prevent stitch gathering and loose stitches. Additionally, the machine allows for the simultaneous adjustment of needle thread tension, presser foot pressure, pitch, feed locus, and feed dog height, ensuring all settings are appropriately linked for optimal sewing performance.
• Needle Bar Stroke: 35.0mm
• Needle Thread Clamp: The needle thread clamp holds the thread and pulls it under the material at the start of sewing, helping reduce thread tangling on the backside of the fabric. This creates a cleaner area around the needle entry and allows for the use of different gauge components.
• Remaining thread at the end of sewing reduced to 3 mm: The Juki DDL-9000C-FSH uses a double-edge driven rotary knife system to trim the thread, leaving only 3 mm of thread remaining. A grooved cam system ensures the thread trimmer releases even if it gets stuck, while the picker device stabilizes the remaining thread length on the material.
• Digital Control Panel: The 4.3-inch color touchscreen provides easy operation and features JUKI's unique intelligent sewing system.
• Functions necessary for sewing machine operation can be used with the hand switch: The hand switches allow you to control essential sewing machine functions, with 20 customizable options like needle up/down correction and reverse-feed stitching. You can set the functions that best match your sewing process through the operation panel. The hand switches come pre-assigned with a "Touch-back switch" and a "Custom switch," which can be reprogrammed by the user for other functions.
• LED Light: The LED light illuminates the needle entry area from both the right and left sides of the needle bar, providing better visibility compared to single-direction lighting. It offers five adjustable brightness levels and can also serve as an auxiliary lamp for enhanced sewing comfort.
• Thread Range: Up to Tex 70 Bonded Nylon

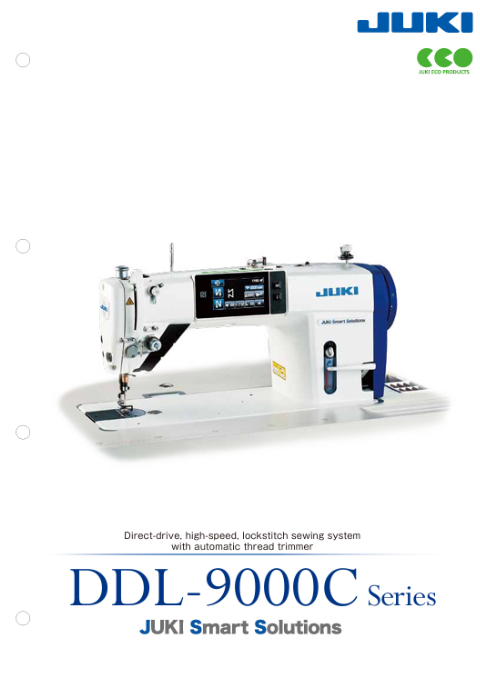

• Feel free to keep scrolling and reading, but be sure to check out our Juki brochure below as well.

Return Policy Disclaimer for Industrial Machines

Please note that due to the specialized nature of industrial machinery, all sales are final and these products are non-returnable once shipped. As these machines are tailored to specific needs, we are unable to accept returns after shipping has occurred.

We encourage you to carefully review product details, specifications, and compatibility before completing your purchase. Our team is happy to assist with any questions or concerns prior to ordering, ensuring the machine meets your needs.

By purchasing an industrial machine from our site, you acknowledge and agree to these terms.

What to Expect: Delivery, Setup, and Product Details

This product is sold as a complete unit. Upon delivery, it will arrive on a palette with the table fully assembled and the machine securely packaged in a box. For your convenience, we provide video installation help below to guide you through the process.

• Variations: Due to the nature of industrial sewing machines, table colors may vary and minor scratches on the table may occur during shipping. This is normal and to be expected with industrial machinery deliveries.
• Needle Positioner Orders: If you’ve chosen to add a needle positioner to your machine, please note that the box will be opened by our technicians to install the needle positioner before shipping. This ensures proper installation and quality control, but rest assured, all components will be carefully re-packed for safe delivery.

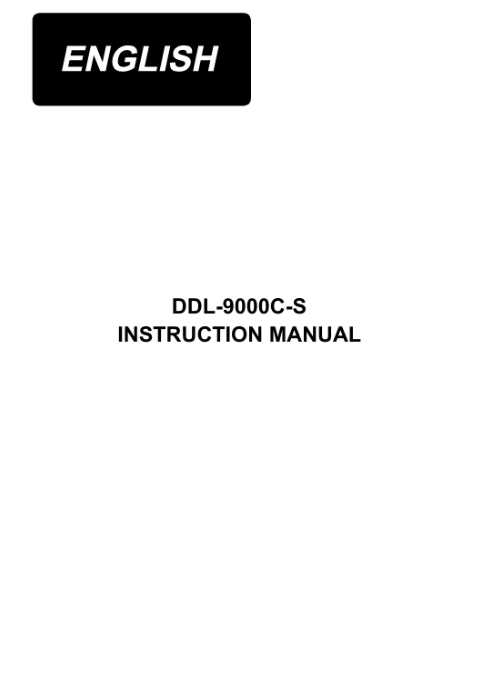

• Manual: The machine does not come with a manual. Please scroll down to view or print manual.
• Open the Drawer: Open the drawer in the table to find accessories.
