Standard Features:

• Thread Trimmer Mechanism-CP18A: The machine is equipped with a thread trimming mechanism that ensures quick and reliable trimming, enhancing overall sewing efficiency.
• Knee Lift Mechanism: Built on the machine head. By hand: 5.5 mm, By knee: 13mm (max.)
• EASY-TO-OPERATE: The machine is designed for easy operation, with features that improve usability. It includes a presser foot with a higher lift (13mm), a light-touch stitch dial, and a throat plate with guide grooves for seam allowances. These features reduce operator strain and increase productivity.
• Highly Responsive Sewing Mechanism for Diverse Materials : The sewing mechanism is designed to provide exceptional responsiveness to different materials. By carefully refining the sewing system for low-tension sewing, the machine adapts easily to various fabrics, ensuring smooth, high-quality seams with consistent results.
• Lubrication: Self-oiling sewing machine with an oil pump. Features an automatic lubricating, full-rotary hook. Recommended oil: Juki New Defrix Oil No. 1.
• Needle Bar Stroke: 35mm
• Servo Motor: It comes with a high-torque, direct-drive motor, which provides smooth, consistent stitching without the need for a clutch motor. This makes it more energy-efficient and quieter compared to older models. This motor is a quieter and hardly makes noise. It is also draws less electrical power making it more efficient. The motor is the Family S Servo 550 W 3/4 HP.
• Optional Digital Motor for Needle Positioner: When using a needle positioner, a digital motor is used over a servo motor because it offers precise control, instant response, and advanced integration with the machine’s electronics, allowing for accurate needle positioning at specific points. Digital motors provide smooth, efficient power with real-time adjustments for varying tasks, ensuring the needle stops exactly where needed without jerky movements. They are more responsive and capable of fine-tuning the needle’s position.The motor is the brushless Juki J7R 650 W 3/4 HP.
• Thread Range: Up to Tex 70 Bonded Nylon

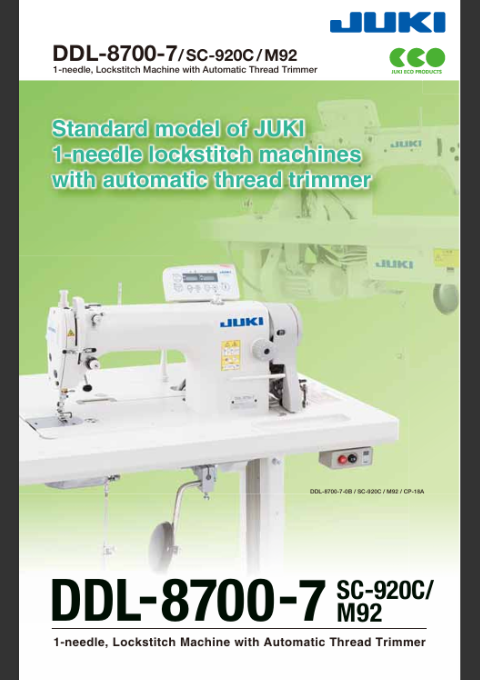

• Feel free to keep scrolling and reading, but be sure to check out our Juki brochure below as well.

Control Panel:

The operator is notified that the bobbin needs to be replaced before the bobbin thread runs out.

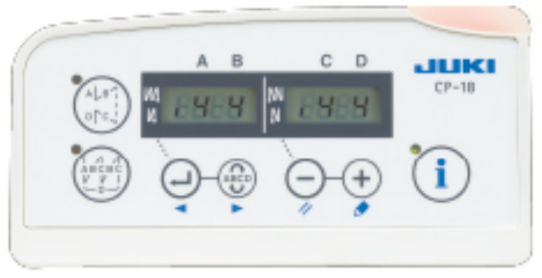

CP-18A

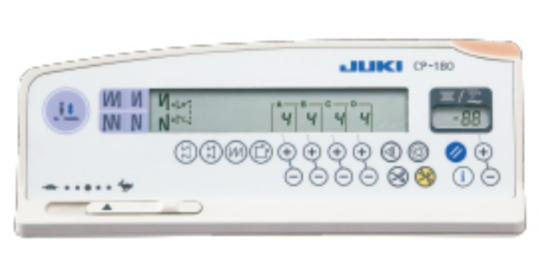

CP-180A

The CP-180A is recommended for sewing difficult-to-sew materials, hard-to-sew parts or for processes in which lots of setup changes are required. With the CP-180A, in addition to the functions of the CP-18A, the speed of stitch adjustment, ON/OFF of the automatic thread trimmer, automatic reverse stitching, double-reverse stitching, constant-dimension sewing, rectangular stitching and multi-layer stitching can be changed over with a finger-tip control, thereby substantially reducing the length of time required for setup changing.

What's the Difference?

Return Policy Disclaimer for Industrial Machines

Please note that due to the specialized nature of industrial machinery, all sales are final and these products are non-returnable once shipped. As these machines are tailored to specific needs, we are unable to accept returns after shipping has occurred.

We encourage you to carefully review product details, specifications, and compatibility before completing your purchase. Our team is happy to assist with any questions or concerns prior to ordering, ensuring the machine meets your needs.

By purchasing an industrial machine from our site, you acknowledge and agree to these terms.

What to Expect: Delivery, Setup, and Product Details

This product is sold as a complete unit. Upon delivery, it will arrive on a palette with the table fully assembled and the machine securely packaged in a box. For your convenience, we provide video installation help below to guide you through the process.

• Variations: Due to the nature of industrial sewing machines, table colors may vary and minor scratches on the table may occur during shipping. This is normal and to be expected with industrial machinery deliveries.
• Needle Positioner Orders: If you’ve chosen to add a needle positioner to your machine, please note that the box will be opened by our technicians to install the needle positioner before shipping. This ensures proper installation and quality control, but rest assured, all components will be carefully re-packed for safe delivery.

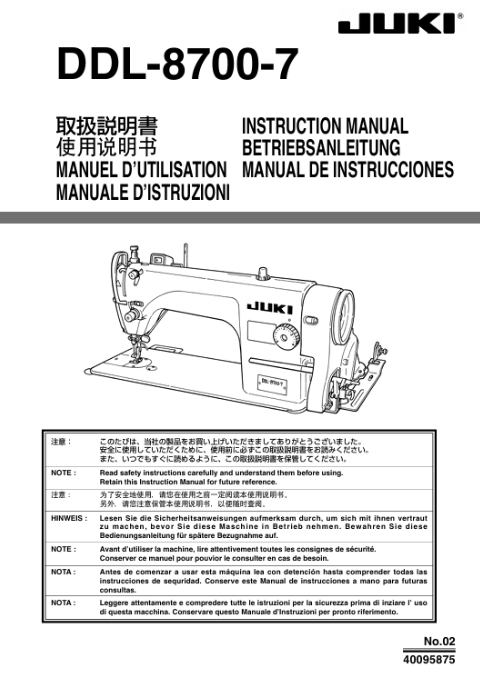

• Manual: The machine does not come with a manual. Please scroll down to view or print manual.
• Open the Drawer: Open the drawer in the table to find accessories.
